1500m2 vertical garden by Urbanarbolismo

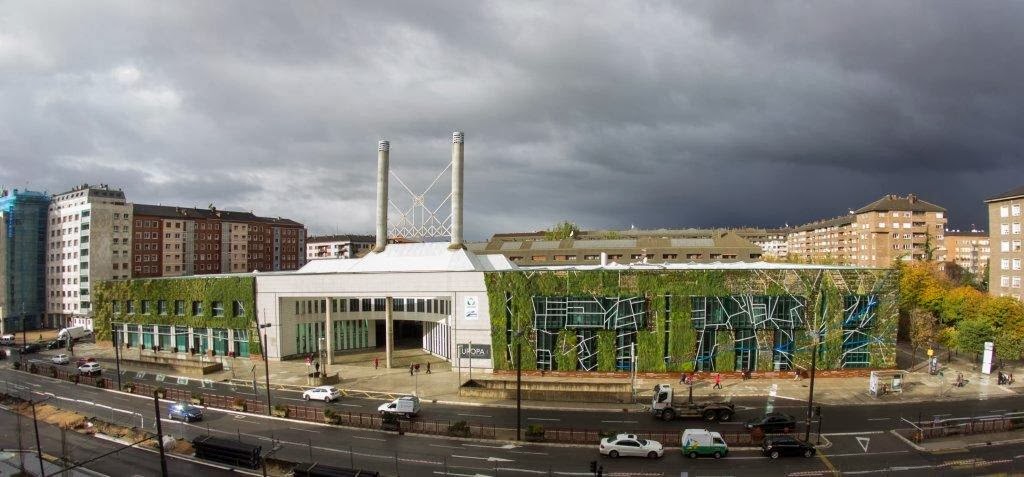

Urbanarbolismo have designed a vertical garden for the Palacio de Congresos Europa (Palace of Congresses Europe) in Vitoria-Gasteiz, Spain.


pl_130114_03



pl_130114_01


pl_130114_04


pl_130114_09


pl_130114_16


pl_130114_19


pl_130114_24


From the designers



The city of Vitoria- Gasteiz is recognized internationally for integrating biodiversity and green spaces in the urban architecture. Within the Inside Green Ring Project Urbanarbolismo and Unusualgreen studios have made this green facade to bring the sorrounding ecosystems to the city center.

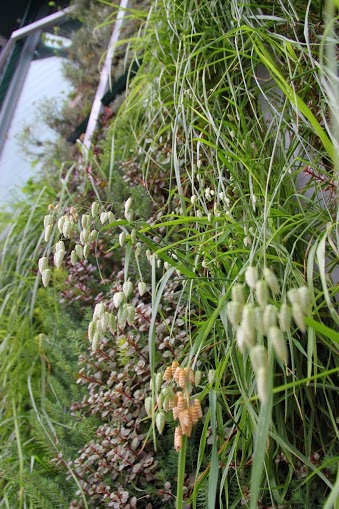

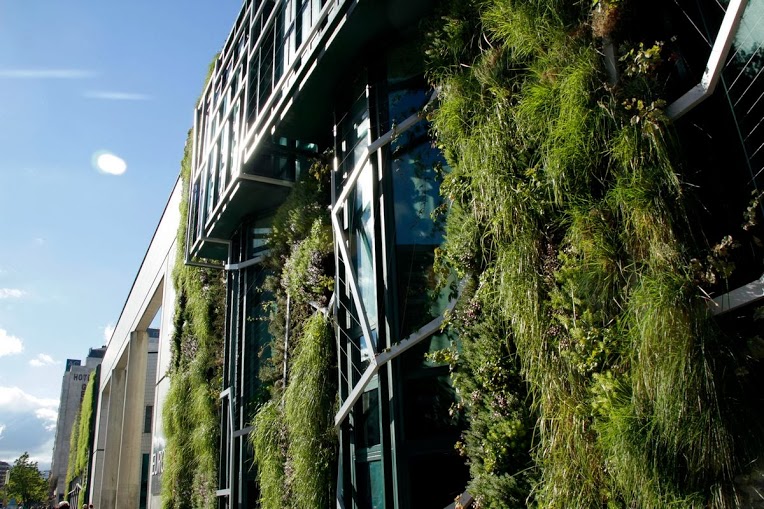

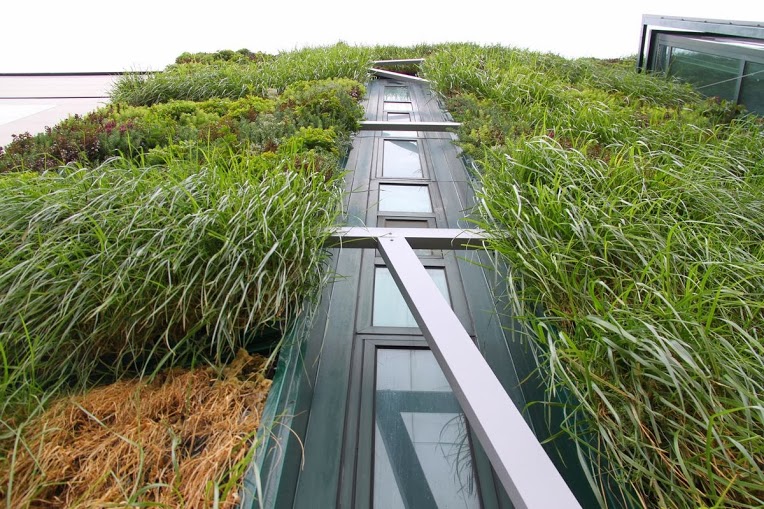

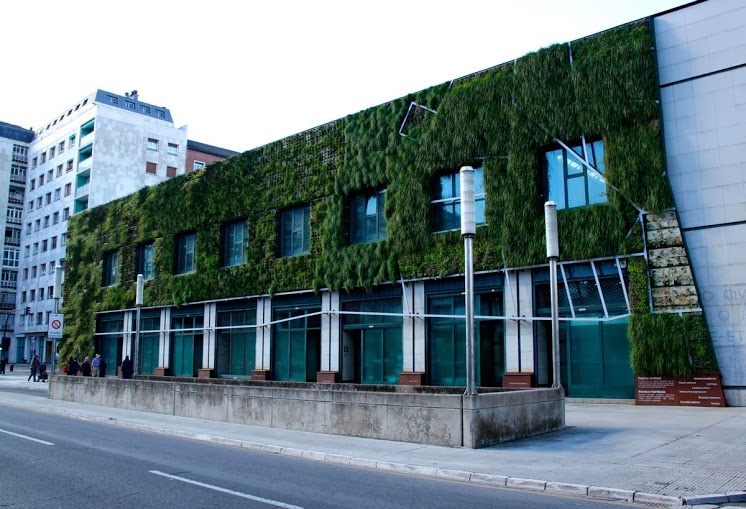

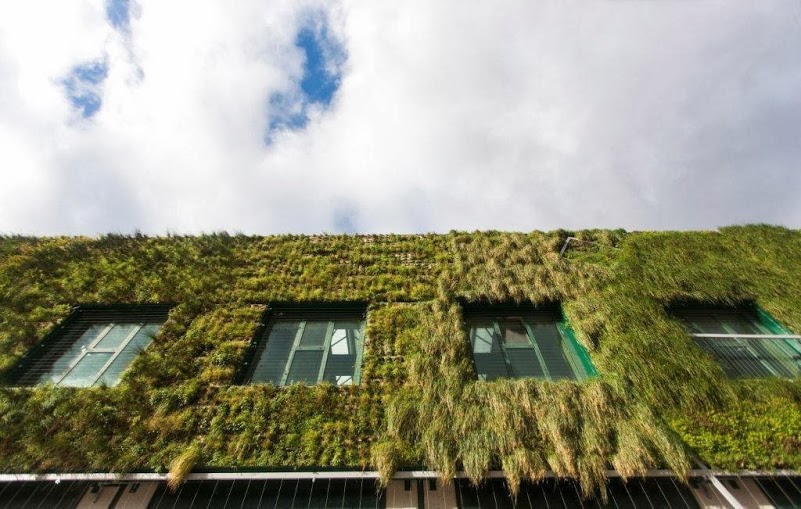

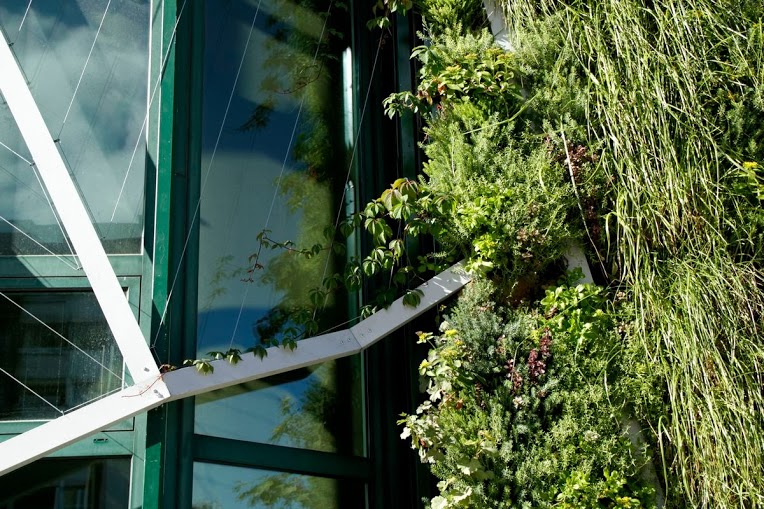

The vertical garde has a total area of 1492m2, of which 1000m2 are an hydroponic vertical garden system f + p and 492m2 are made of climbing plants covering the windows. We have been used more than 33,000 native plants of different varieties from Alava and the Basque Country .


The main reason to make the project was to improve energy consumption of the Palace of Congresses, the vertical garden “f + p preplant ” system adds a thermal resistance of 2,644 m2.K / W . This represents a 270% increase on the existing facade insulation, resulting in energy savings.

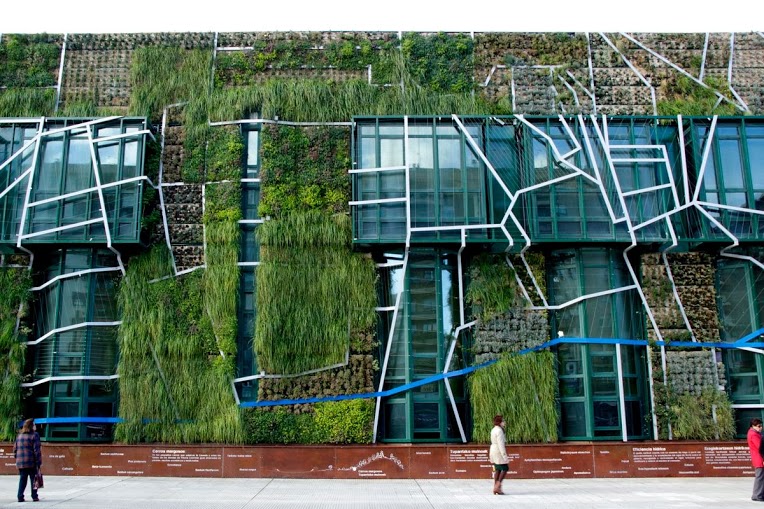

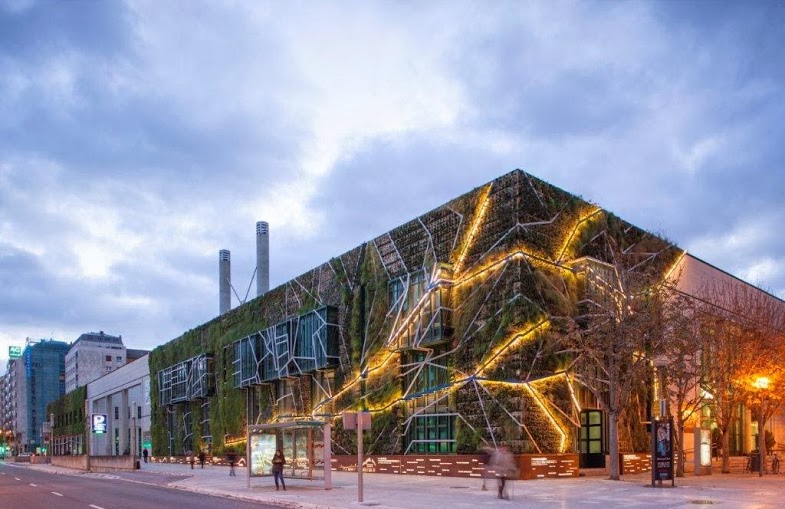

The design performs the ecosystems that exist in the surrounding of the city of Vitoria-Gasteiz. From left to right the facade shows the wetland vegetation of Salburua, the agricultural field plots Alava, the ecosystems from the loamy hills and beech forests of the mountains of Vitoria.

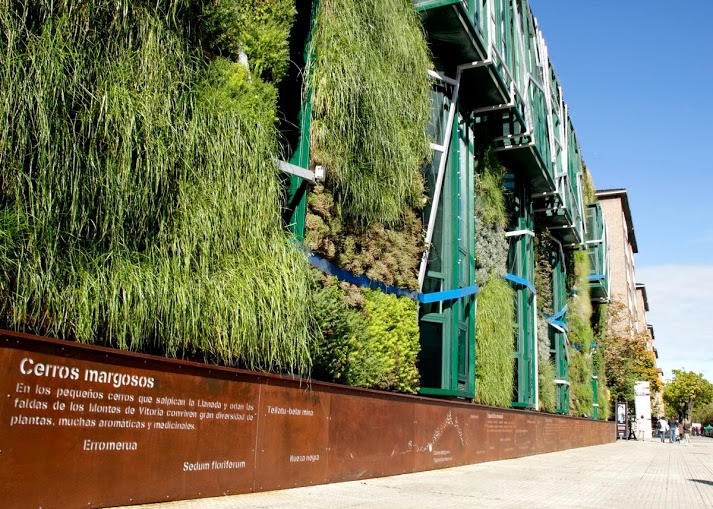

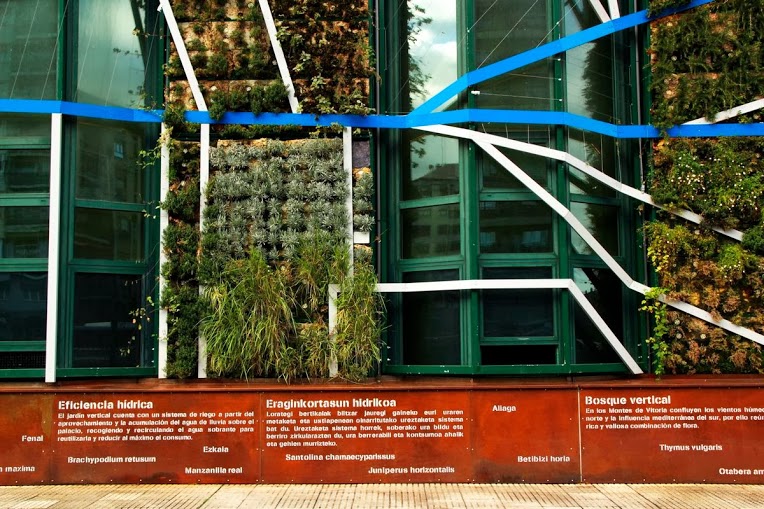

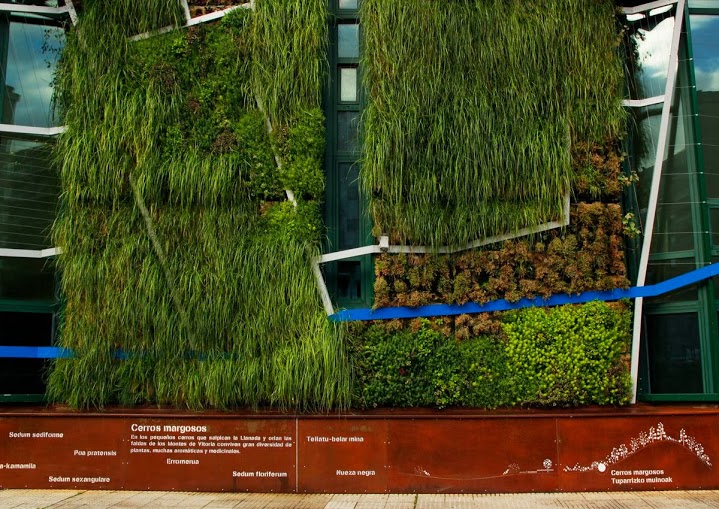

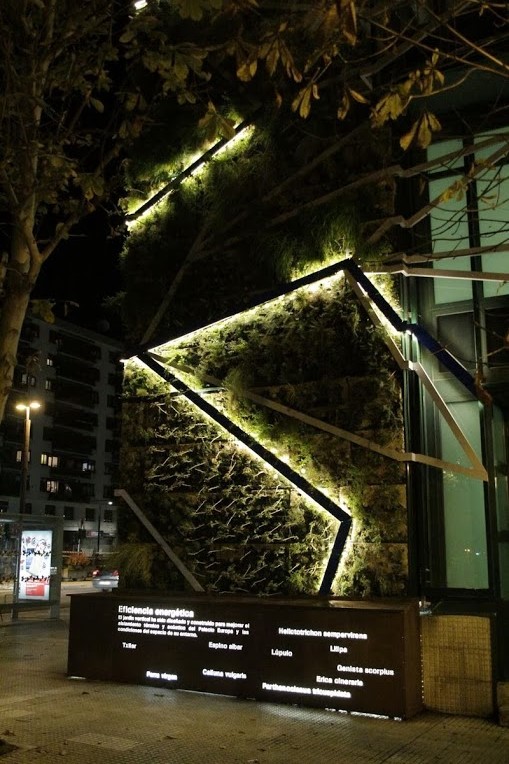

At the base of the facade we have placed a corten steel backlit socket which contains an explanation of the ecosystems and plant species of the vertical garden. 97% of the species used in the garden are native or endemic from Álava. This is one of the first vertical garden reproducing native ecosystems of the area where it is located.The use of native plants in the design has been one of the main challenges of the project, many of the plants from Vitoria are adapted to periods of drought and are struggling to survive in moist environments such as conventional vertical gardening systems. For this project we redesigned the f+p system, optimizing substrate saturation so that these plants can perfectly grow .


The hydroponic system used to maintain this garden gives the optimal substrate nutrient conditions , pH, conductivity and humidity for this type of vegetation, the whole system is monitored by remote control in order to save water , energy and supervise the development of plants .

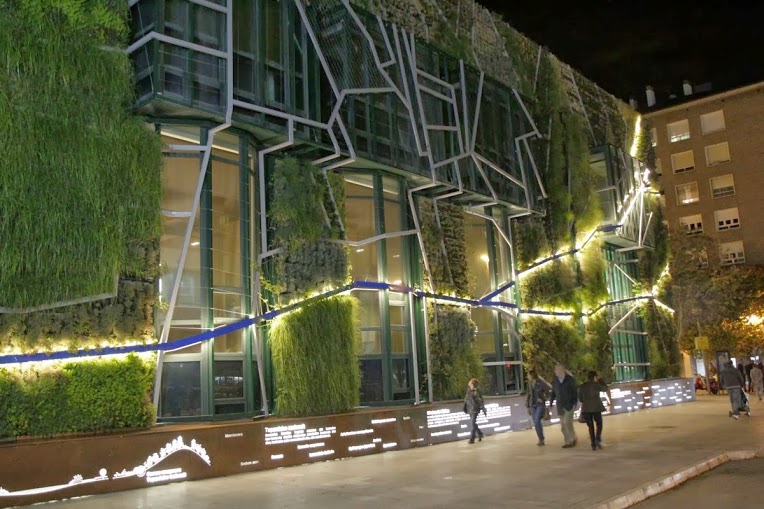

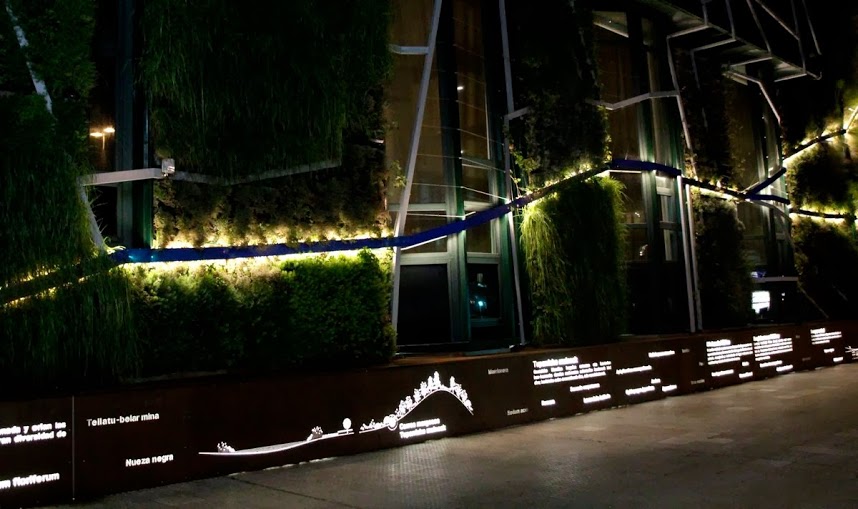

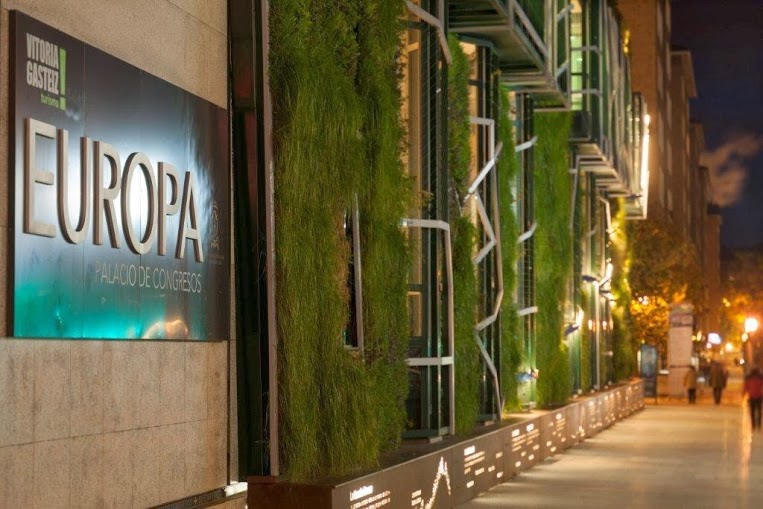

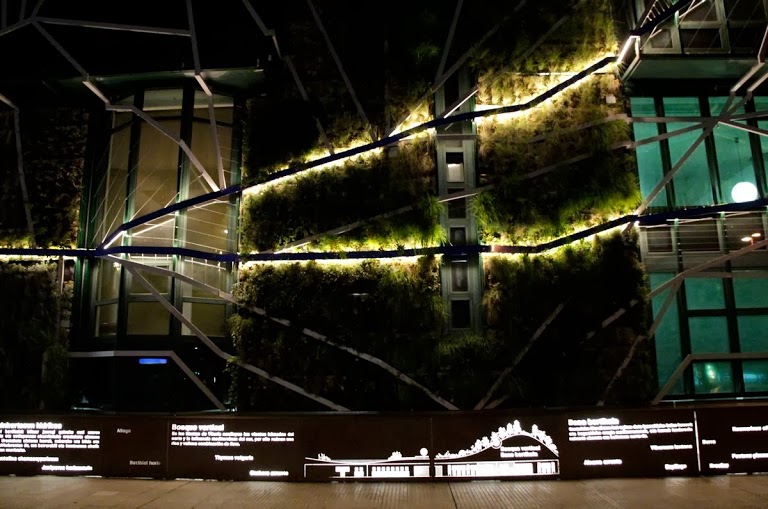

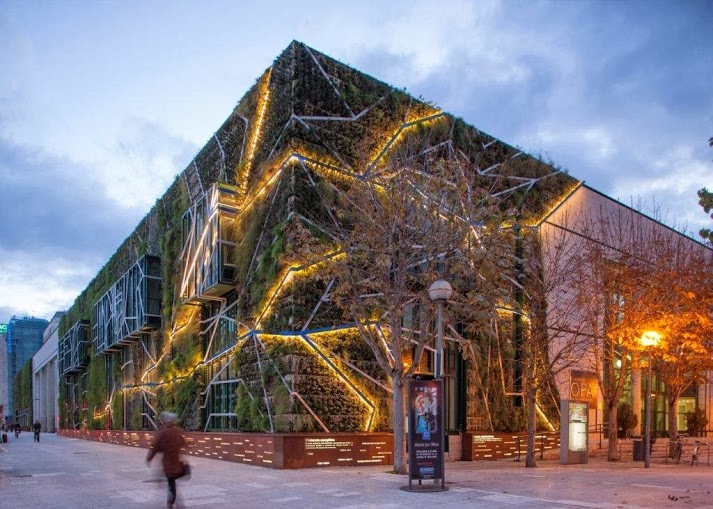

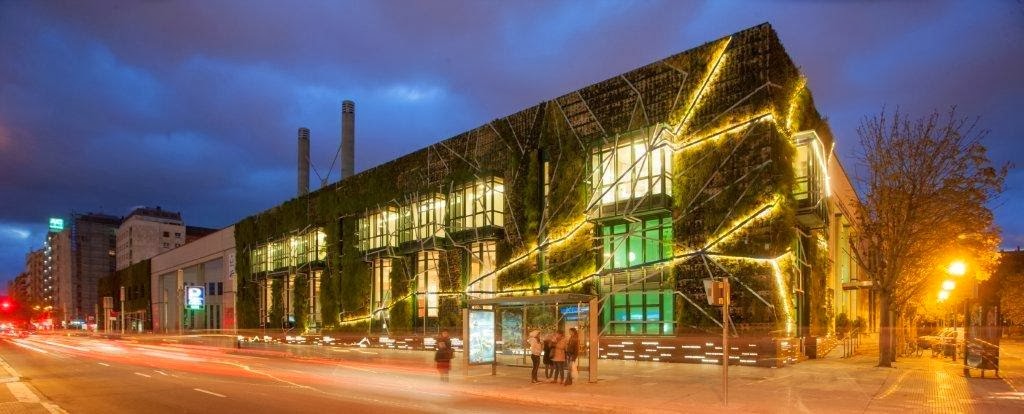

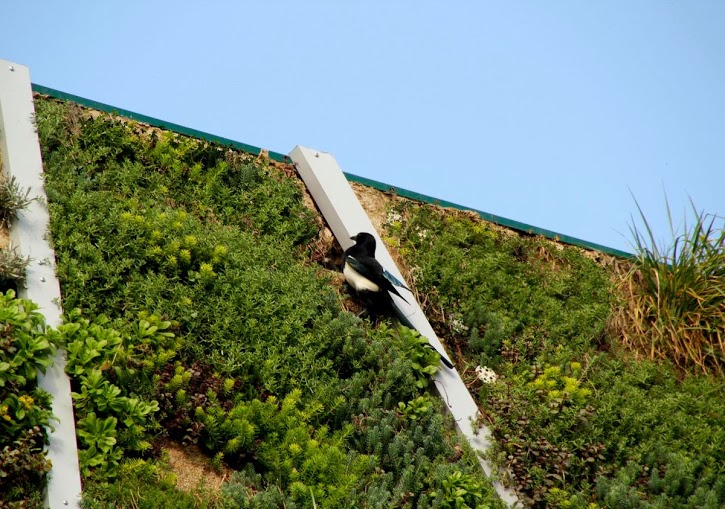

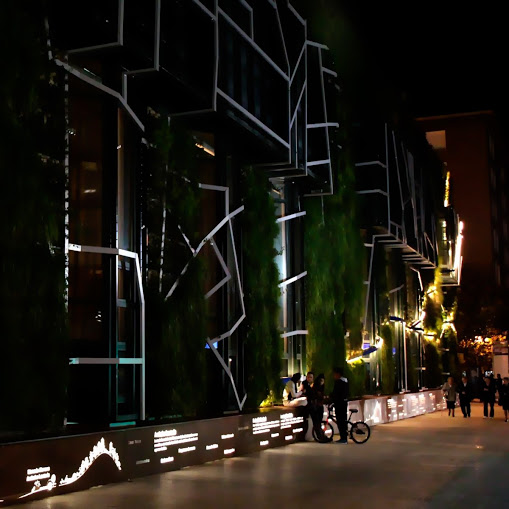

The river-profile that structures design vertical forest is illuminated at night by low-power LEDs. This creates an unique atmosphere for a walk in the center of Vitoria- Gasteiz.The corten steel base not only provides educational information on the garden, also becomes a space for relaxation and conversation, a bench in a Vertical Park.We were surprised how quickly nature breaks through the vertical garden, thanks to native plants it has been colonized by all kinds of insects and animals, the birds have quickly appeared, here you have a picture of a magpie foraging.



pl_130114_01 pl_130114_02 pl_130114_03 pl_130114_04 pl_130114_05 pl_130114_06 pl_130114_07 pl_130114_08 pl_130114_09 pl_130114_10 pl_130114_11 pl_130114_12 pl_130114_13 pl_130114_14 pl_130114_16 pl_130114_17 pl_130114_18 pl_130114_19 pl_130114_20 pl_130114_21 pl_130114_22 pl_130114_23 pl_130114_24 pl_130114_25 pl_130114_26 pl_130114_27 pl_130114_28

Design: Urbanarbolismo


Elegant, Glossy Wave Piano Design Inspired by Waves

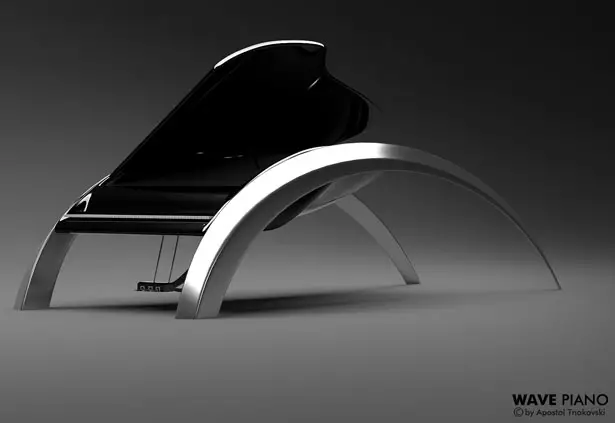

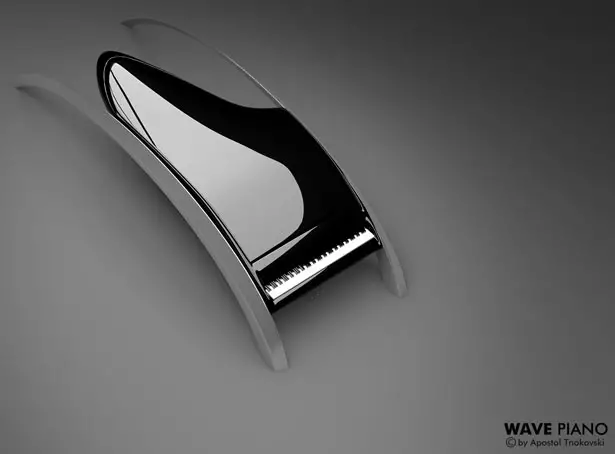

A modern piano design, it’s 5-meter long futuristic concept piano inspired by waves. It’s been awhile since we heard from Apostol Tnokovski, this time he submitted his latest project: a beautiful and elegant piano. The combination of the curved glossy black body followed by the two fine-brushed metal legs gives a powerful “out of this world” impression. Although, the concept is not inspired by any modern pop-artist in particular, Tnokovski truly hopes that it will get someone’s attention.
