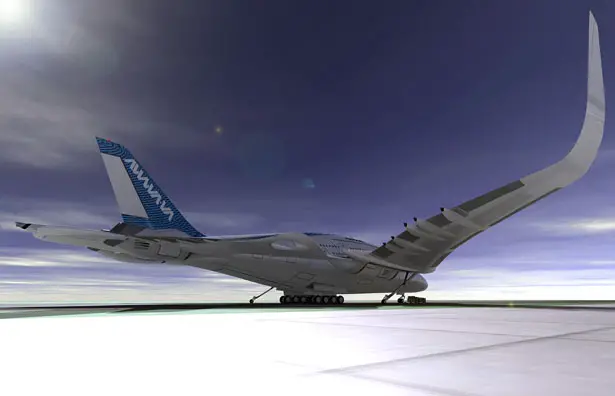

AWWA Sky Whale Concept Plane by Oscar Viñals

AWWA “Sky Whale” Concept Plane is a project about the future “green” aircraft designs for the regular airline’s planes of the 21st century, that could be based in a technical solutions more friendly with the environment, most efficient and with the maximum performance.


For example it is expected to use systems that will:



  • Reduce aircraft drag

  • Reduce aircraft weight

  • Reduce engine specific fuel consumption

  • Reduce oxides of nitrogen emissions of the engine

  • Reduce aircraft noise by 1/8 compared with current standards

  • Reduce damages in a hypothetical emergency landing

  • Increase its self-sufficiency

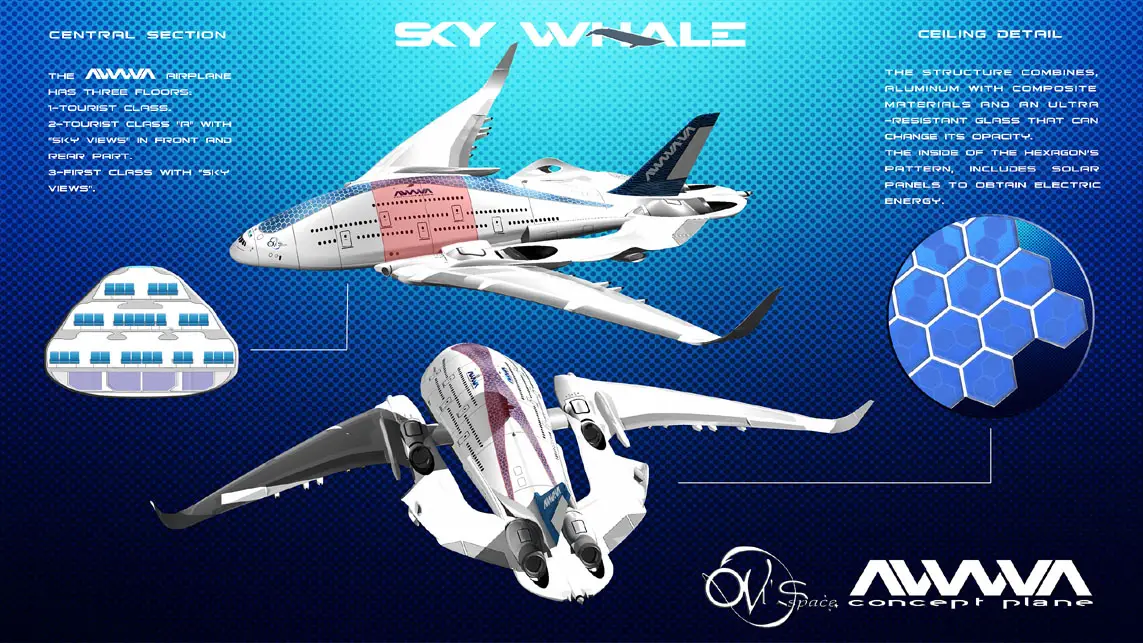

The AWWA-VA could be equipped with a new advanced technologies from alloys, ceramic or fiber composites, carbon nanotube and fiber optic cabling to self-healing skin, hybrid electric engines, active wings , double fuselages and virtual reality windows with adaptable opacity and capable to create electric energy with micro solar cells in hexagonal geometry like a part of structure’s ceiling. Compared to the typical wing used today, the active wings are longer from tip to tip, with an active air flow control system – eccentric turbine inside the wing near to the fuselage – which could redirect the laminar air flow and turbulences and at the same time produce electric energy for the hybrid engines (4 oversize electric-fuel engines). Projected advances in battery technology enable a unique, hybrid turbo-electric propulsion system.


Designer : Oscar Viñals

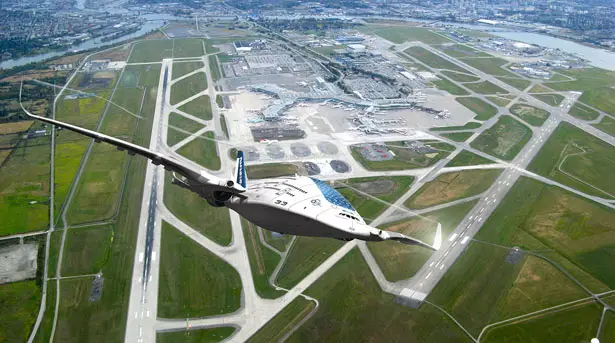

AWWA Sky Whale Concept Plane by Oscar Viñals

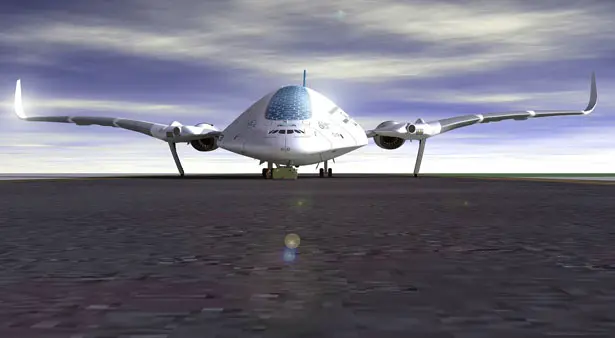

AWWA Sky Whale Concept Plane by Oscar Viñals

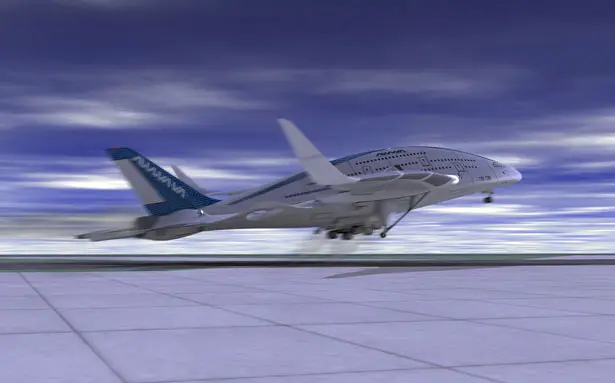

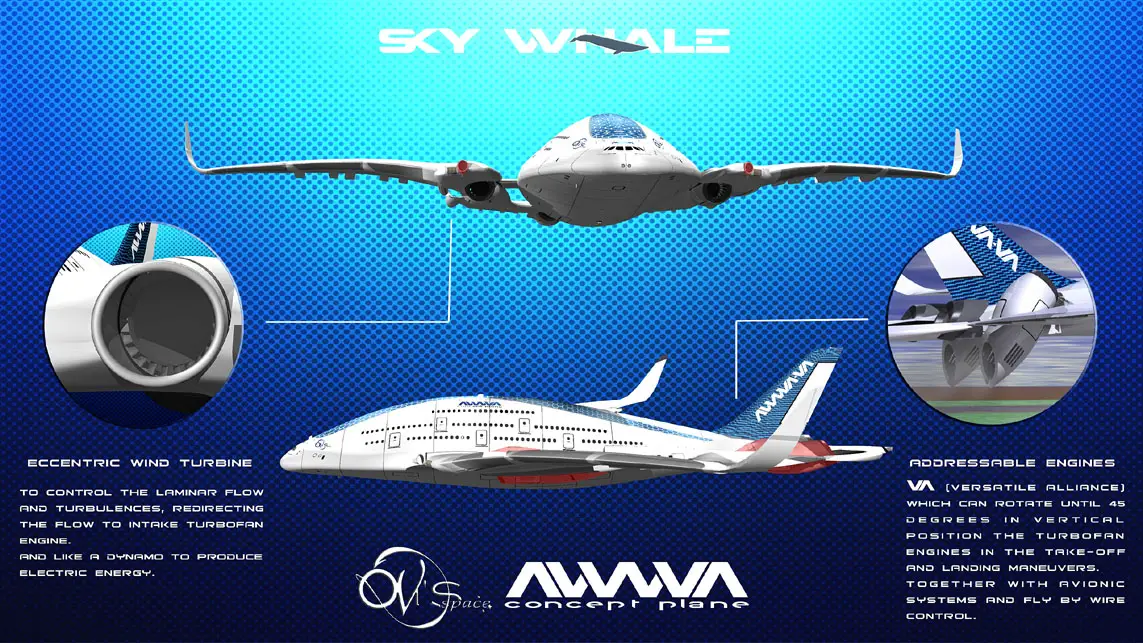

The aircraft’s engines could use both fuel to burn in the engine’s core, and electricity to turn the turbofan when the core is powered down. The AWWA’s engines could rotate up to 45 degrees in vertical position to assist in the take-off and landing maneuvers (VA -Versatile Alliance System- ), reducing substantially the distance of track to do this actions and like a support in adverse circumstances. All controlled with avionic systems and fly by wire system that is assisted with active sensors located through the plane’s surface.


The disposition of the wings and its architecture (with integrate engines) separated from the airplane’s fuselage like a security measure, that in a hypothetical fatal case of an emergency landing, these could auto-break up to reduce the damages on the passengers section. It could have a seating capacity for approx. 755 passengers, allocated in three “levels” or floors; 1rst class on top with “sky views” & all conceivable luxuries for a trip in an airplane like this, tourist class “A” in the middle floor with ample seats & “sky views” in front and rear and tourist class with all the comfort and space to have a pleasant flight.

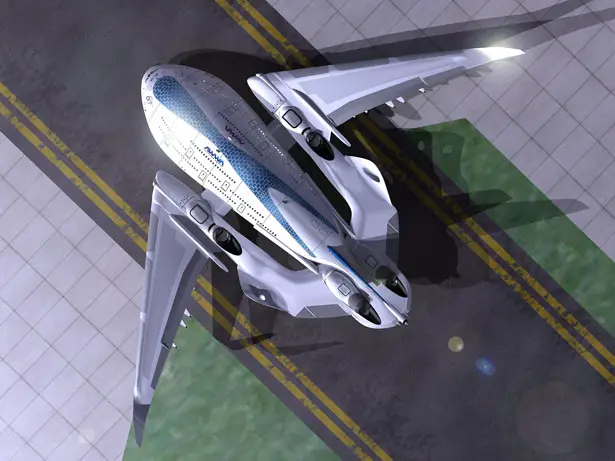

AWWA Sky Whale Concept Plane by Oscar Viñals

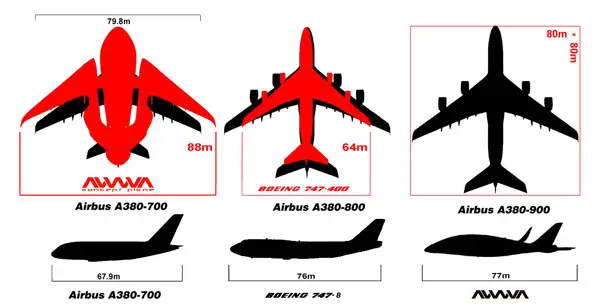

AWWA Sky Whale Concept Plane by Oscar Viñals

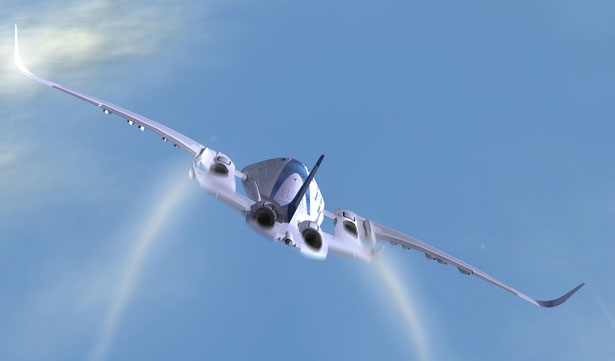

AWWA Sky Whale Concept Plane by Oscar Viñals

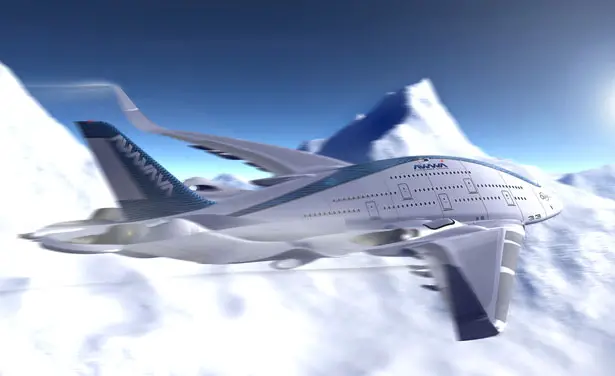

AWWA Sky Whale Concept Plane by Oscar Viñals


AWWA Sky Whale Concept Plane by Oscar Viñals


AWWA Sky Whale Concept Plane by Oscar Viñals


AWWA Sky Whale Concept Plane by Oscar Viñals


AWWA Sky Whale Concept Plane by Oscar Viñals


AWWA Sky Whale Concept Plane by Oscar Viñals


AWWA Sky Whale Concept Plane by Oscar Viñals


Click above image for bigger view


AWWA Sky Whale Concept Plane by Oscar Viñals


Click above image for bigger view


AWWA Sky Whale Concept Plane by Oscar Viñals


AWWA Sky Whale Concept Plane by Oscar Viñals


Tuvie has received “AWWA Sky Whale Concept Plane” project from our ‘Submit A Design‘ feature, where we welcome our readers to submit their design/concept for publication.





  • Nerpa Transformable Dog Sledge for North Russia Environment Nerpa Transformable Dog Sledge for North Russia Environment Nerpa Transformable Dog Sledge has been designed to suit North Russia environment. Families usually keep 2 or more sledges for different needs: one for passengers, another one for sightseeing or outing, and the last one to carry their daily needs,...

  • The Ultra-Light Mosquito Helicopter Can Go Through Even Caves The Ultra-Light Mosquito Helicopter Can Go Through Even Caves The ultra-lightweight mosquito helicopter concept has been designed for army to commute through difficult terrains like canyons, forests and even caves. This flying object is empowered with four GEMINI technology based powerful electric motor and ...

  • Paform Emergency Transporter to Support Search and Rescue Operations Paform Emergency Transporter to Support Search and Rescue Operations For decades, natural disaster strikes human being with no sign and prediction, causing a huge impact around the world. By taking inspiration from the major disasters happened in recent years, a multi-terrain crawler transport has been designed to ...

  • M2G “White Bat” Space Business Craft for Space Tourism M2G “White Bat” Space Business Craft for Space Tourism M2G "White Bat" Space Business Craft is a spaceship designed for future's sector of Space Tourism, its basic concept is to maximize the performance for the future trips into space at 100km to 120km of altitude, using the same trip to carry out mul...

  • Ecologic Aircraft Design Concept by Daphnis Fournier Ecologic Aircraft Design Concept by Daphnis Fournier Ecologic Aircraft Design concept is futuristic aircraft that spends less energy to travel. It’s been designed with photovoltaic cells on its large roof because this electric aircraft relies heavily on the sun’s energy. In order to minimize any ene...




AWWA Sky Whale Concept Plane by Oscar Viñals is originally posted on Tuvie
